SMD2835 LED Strip 90-180LPW Straight / bendable / flexible / Zigzag / 1 LED 1 Cut

1. Lighting Efficacy: 90-100m/w or High Efficiency 130-180lm/w @CRI90;
2. Light source: SMD2835,Straight line or Zigzag or 1 LED 1 Cut;
3. SDCM:<3.
4. Voltage: DC12V/24V; DC5V for 1 LED 1 Cut;
5. PCB Width: 5-12mm or 20/30mm for 2 rows;
6. IP20, 120dg, 5M/Roll, CCT 2000K-6500K and colors optional;
7. 5yr warranty.

 Features:

1. Lighting Efficacy: 90-100m/w or High Efficiency 130-180lm/w @CRI90;

2. Light source: SMD2835,Straight line or Zigzag or 1 LED 1 Cut;

3. SDCM:<3.

4. Voltage: DC12V/24V; DC5V for 1 LED 1 Cut;

5. PCB Width: 5-12mm or 20/30mm for 2 rows;

6. IP20, 120dg, 5M/Roll, CCT 2000K-6500K and colors optional;

7. 5yr warranty.

 Details: (All LED Strips can be IP20 / IP65 / IP67 / IP68)

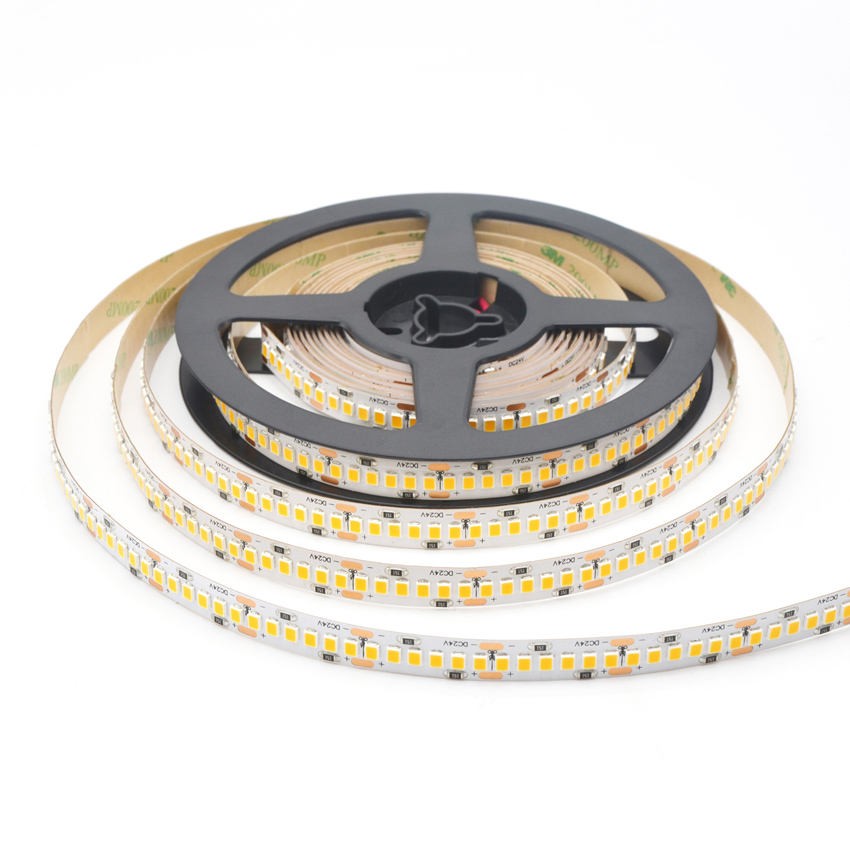

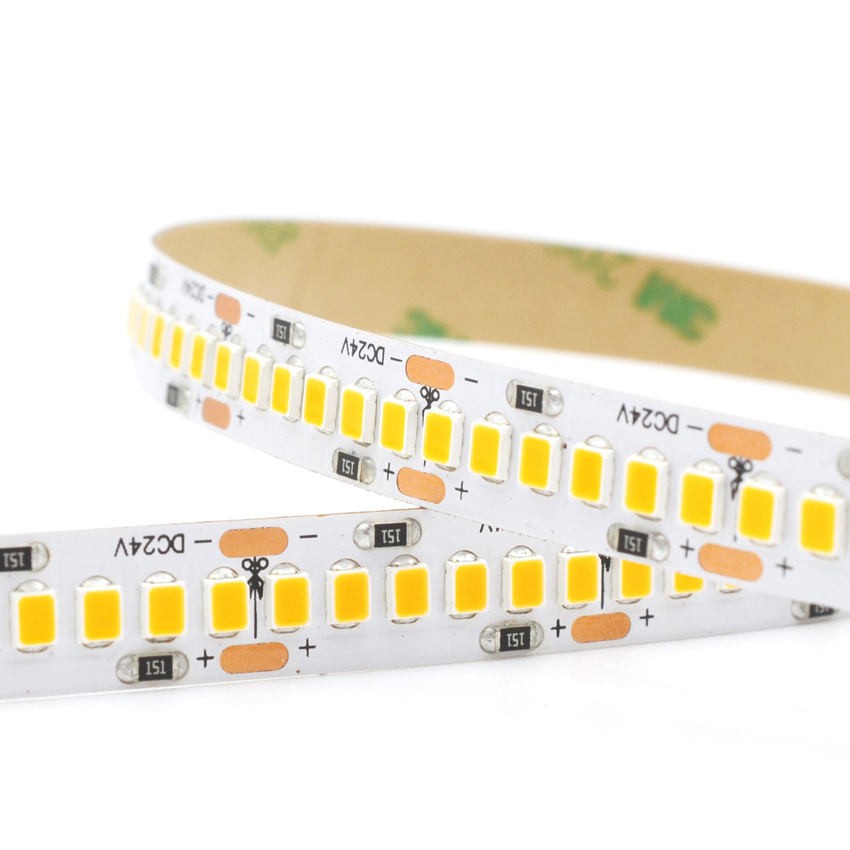

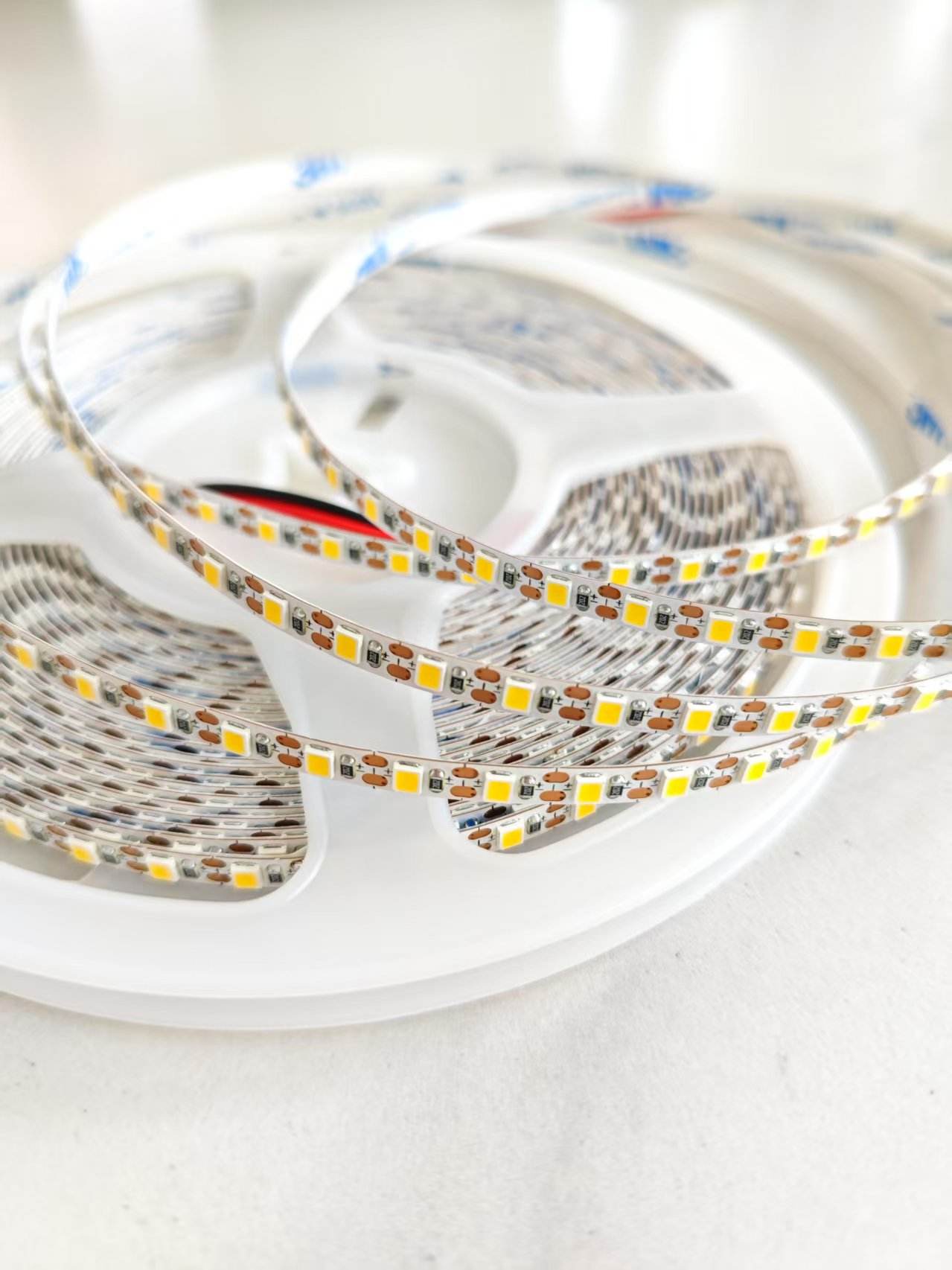

image.png1. Straight SMD2835 Strip (For general commercial using)

1. 2835 Strip.jpg

2. Zigzag bendable LED Strip (Good for bendable place or corner using)

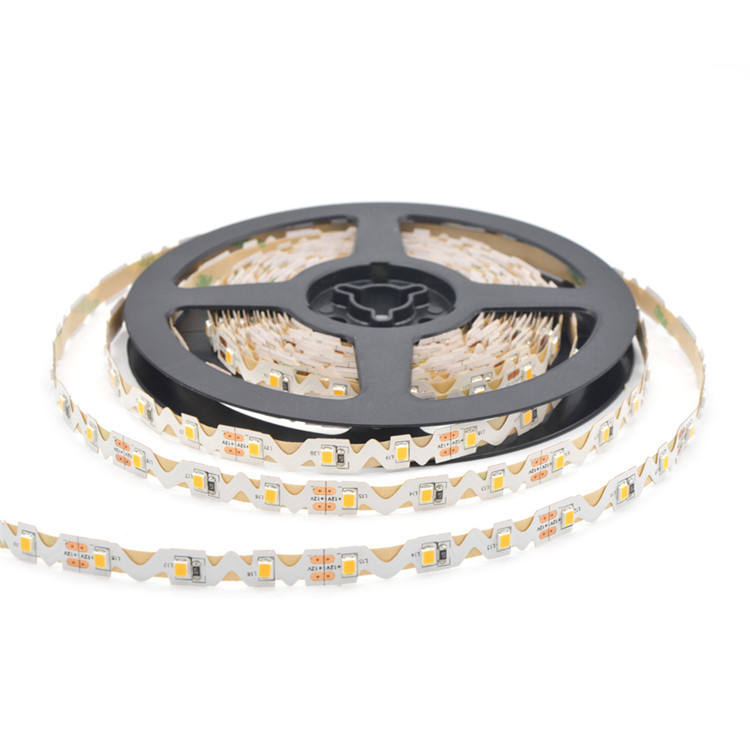

3. zigzag strip.jpg

zigzag app.jpg

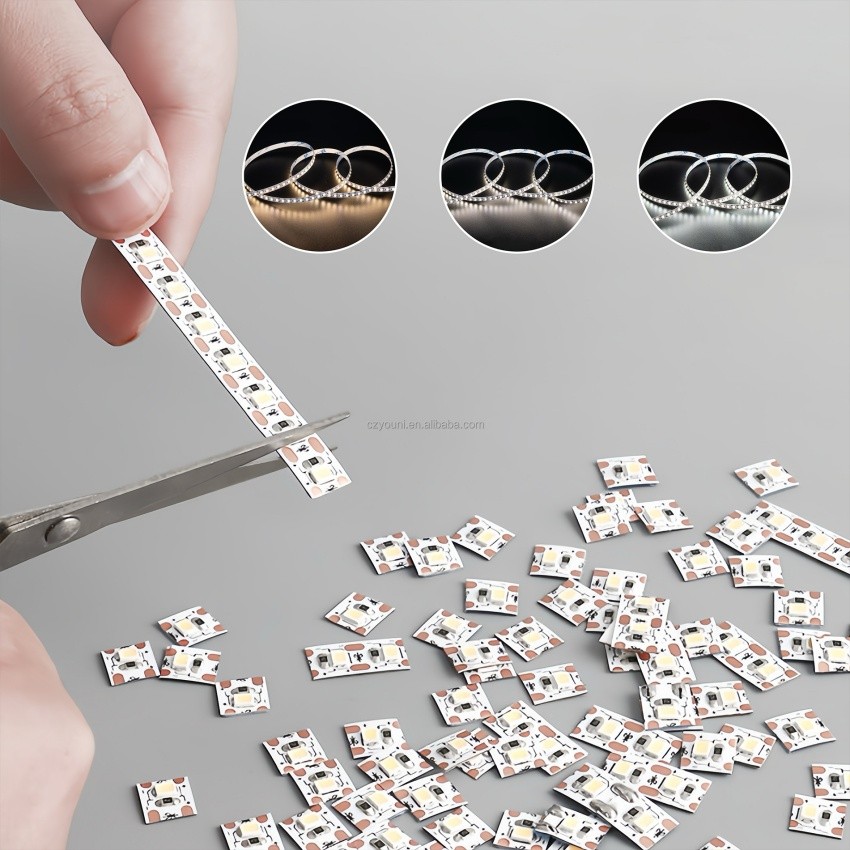

3. One LED one cut (Flexible design, no shade for any space using)

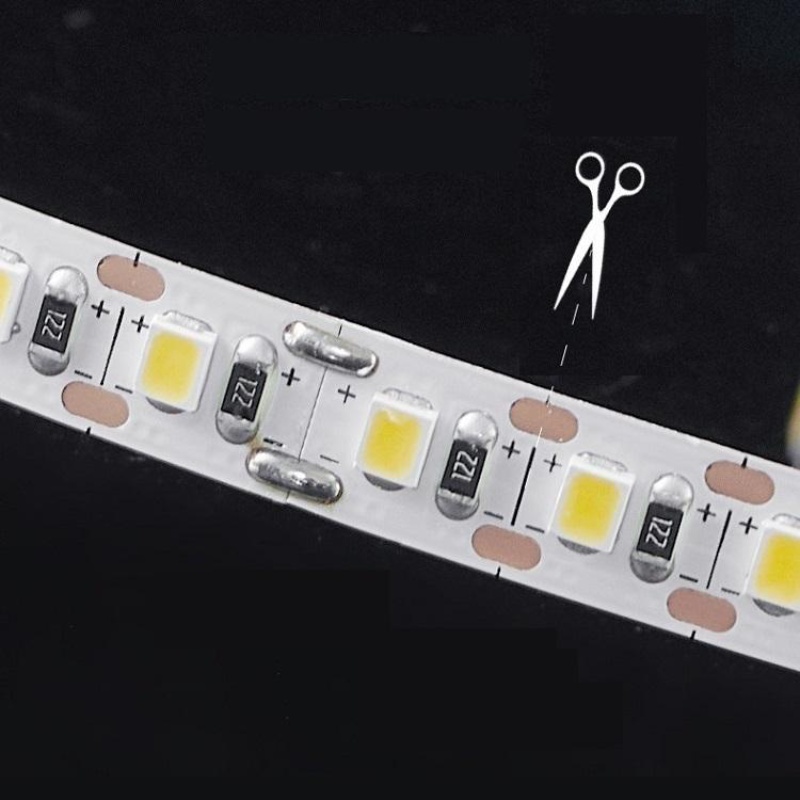

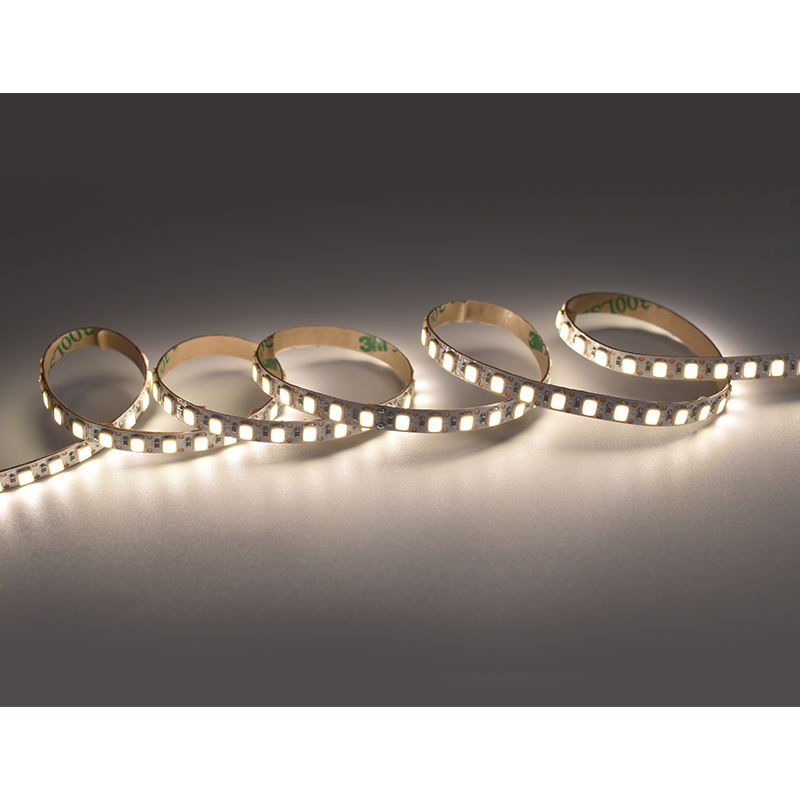

4. 1 led 1 cut-5.jpg5. 1 led 1 cut.jpg6.1 led 1 cut strip-2.jpg

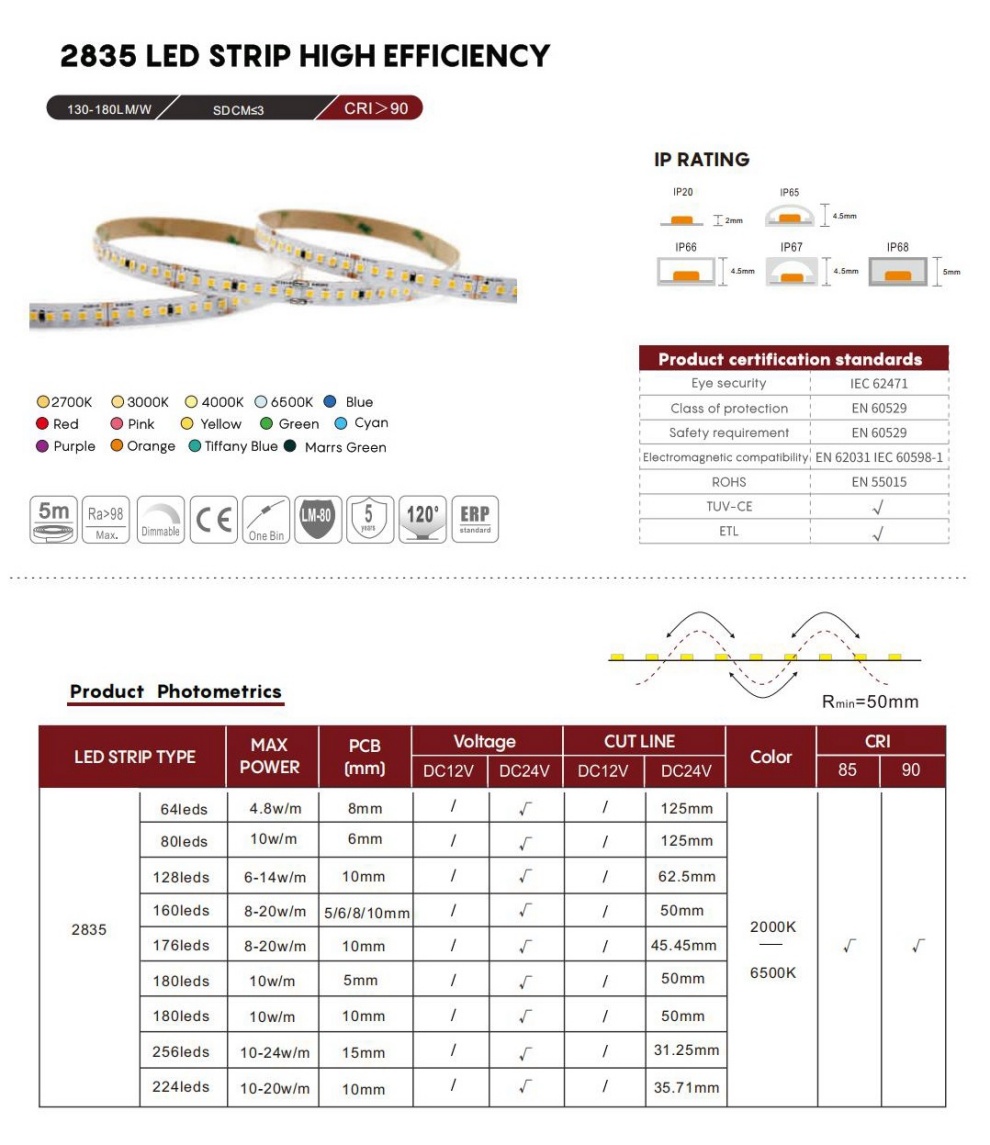

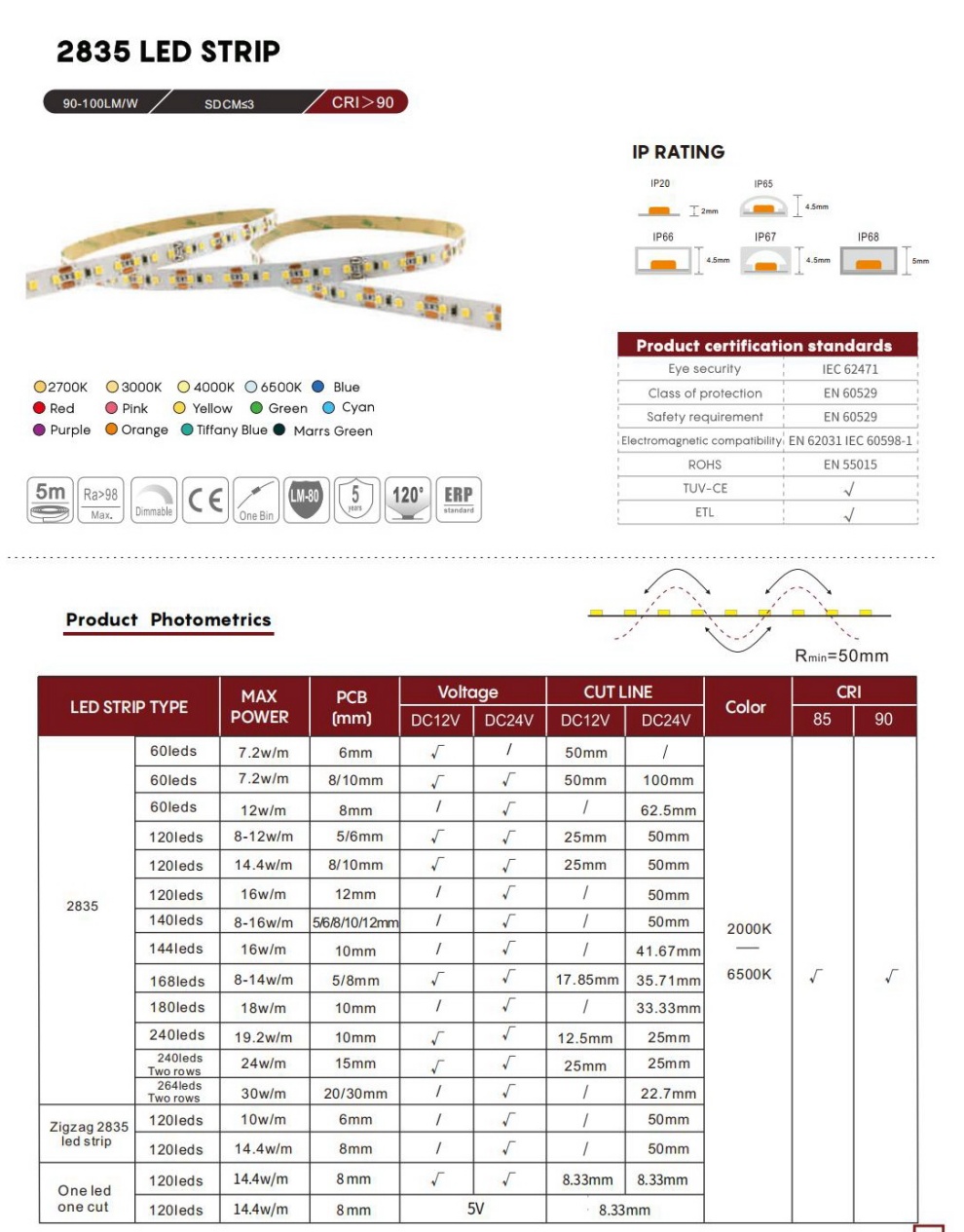

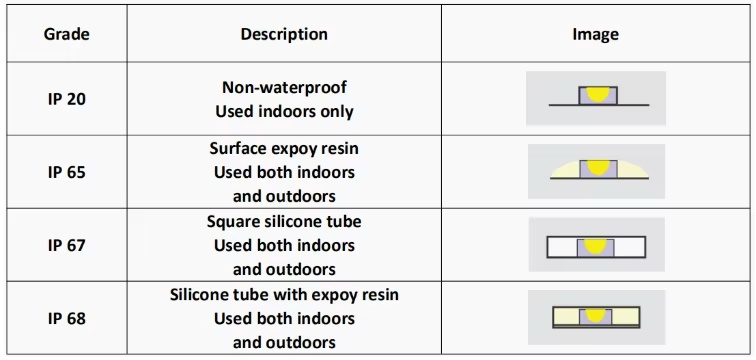

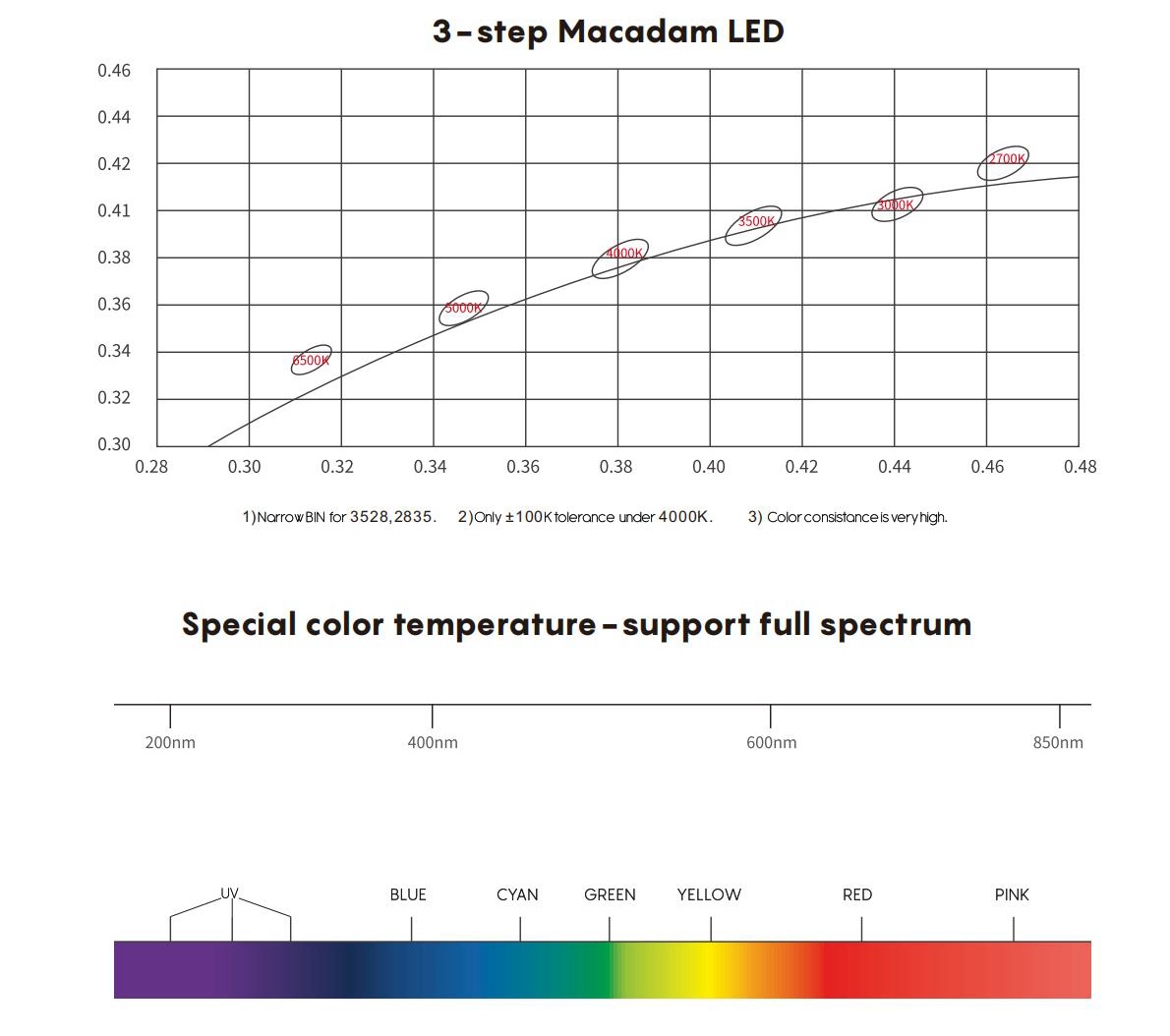

1. SMD2835灯带130LPW高光效.jpg2. SMD2835灯带普通光效.jpg3.SDCM和波长.jpgCRI OF STRIP_副本.jpgstrip IP Rating.jpg

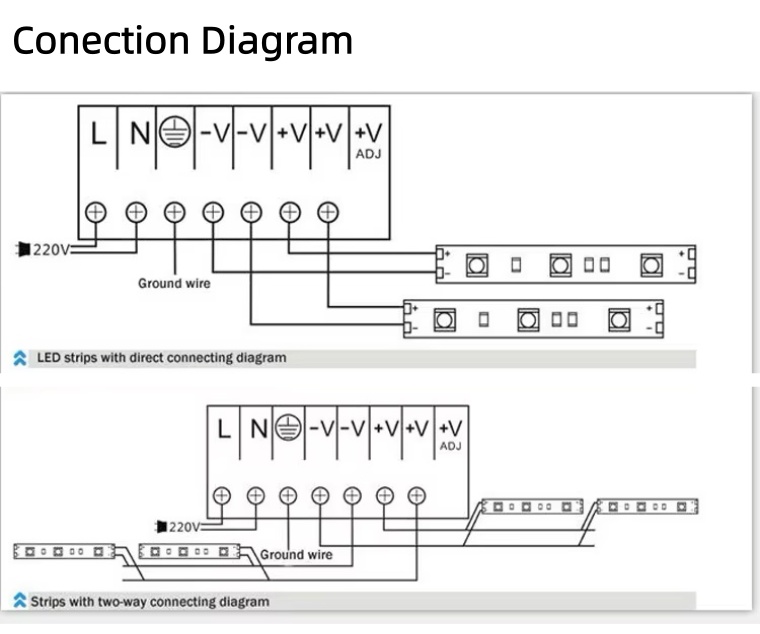

strip connection diagram.jpg

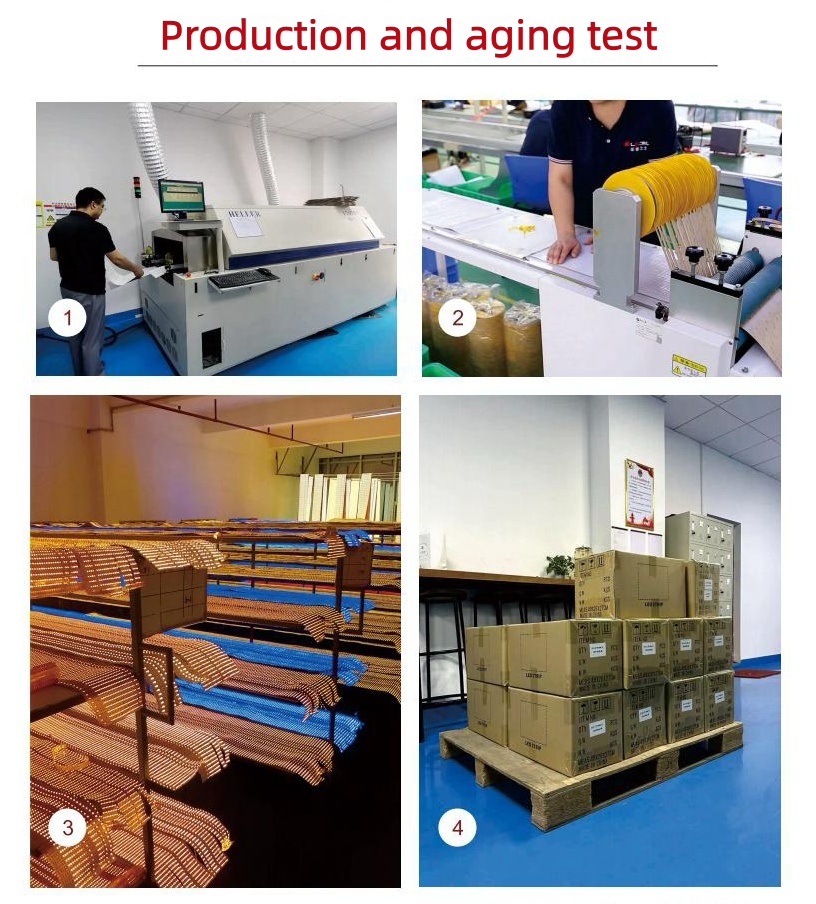

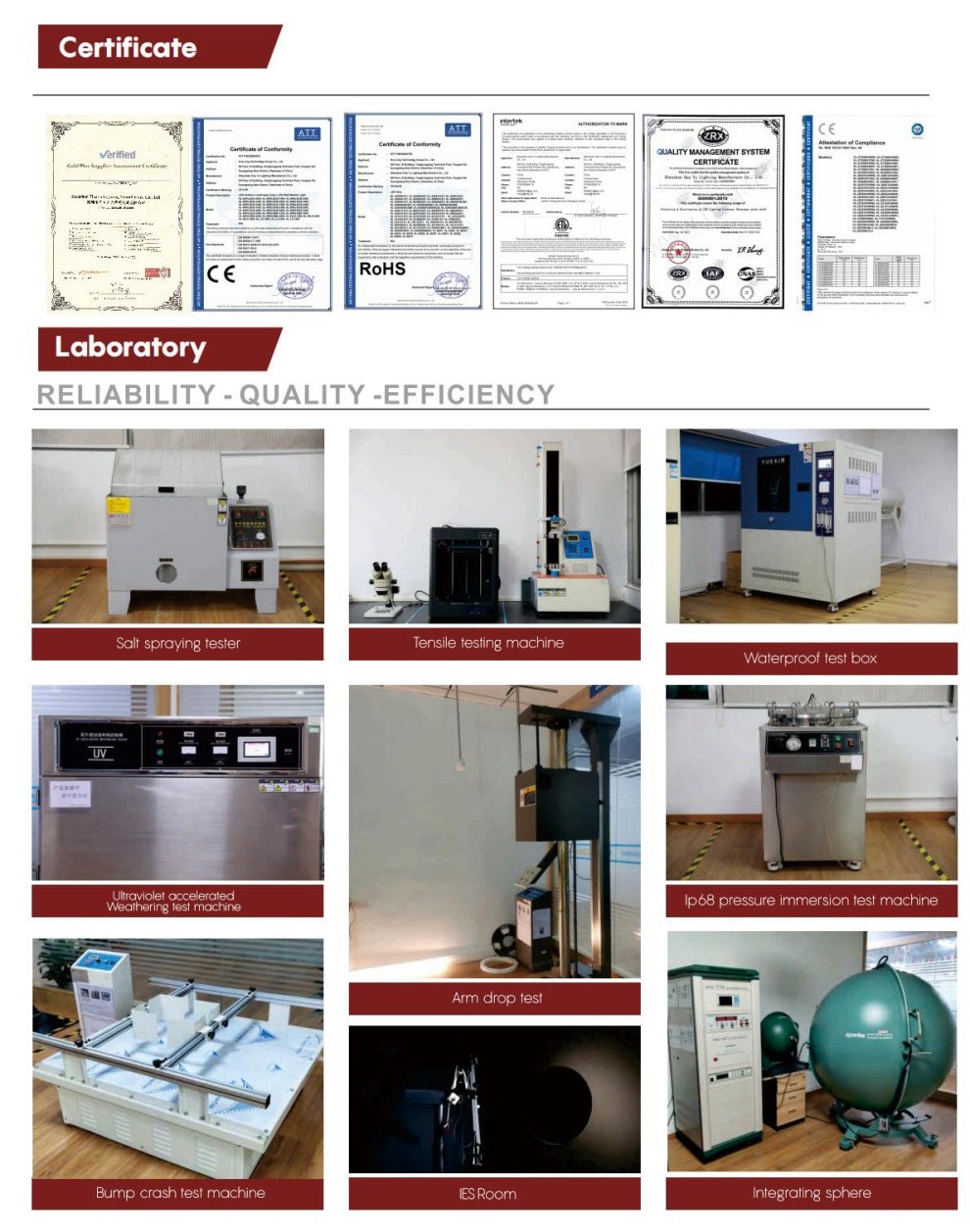

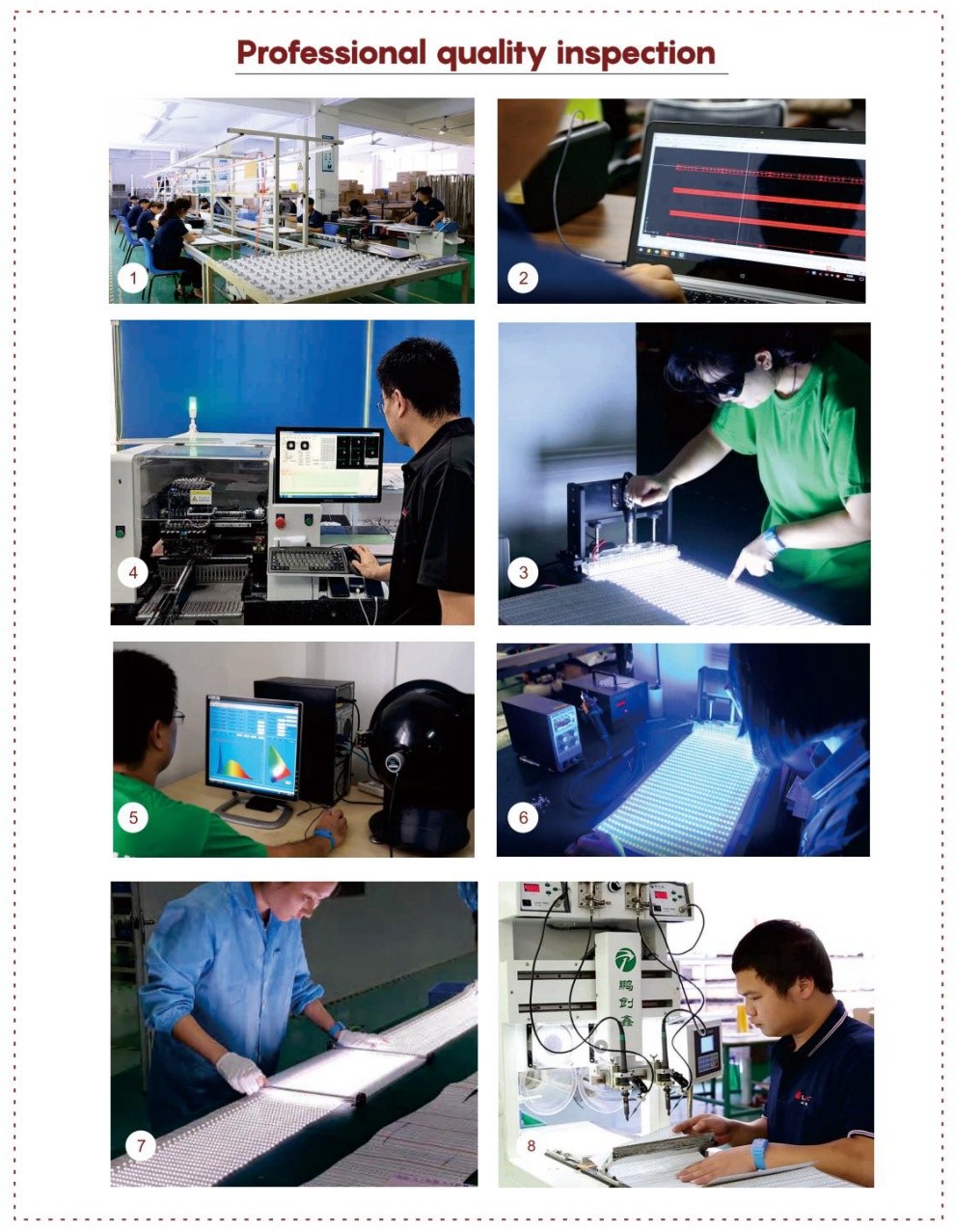

4. 灯带的老化和出货.jpg5. 灯带生产和测试.jpg
